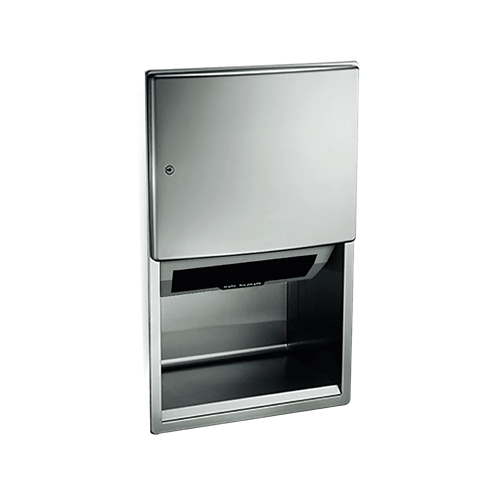

ASI 204523AC Roval Recessed Automatic Roll Paper Towel Dispenser
The ASI 204523AC is a recessed, AC-operated automatic roll towel dispenser for installations with the required wall cavity and power connection. Its supplied low-voltage adapter powers touchless dispensing, with adjustable towel length, delay, and economy settings.
Key specifications
- Type 304 stainless steel with satin finish and concealed, multi-staked piano hinge.
- Accepts roll towels up to 800 ft. long and dispenses one preset length when hands enter the sensor zone.
- Three three-position switches set towel length, delay, and economy.
- Supplied adapter: 110–240 VAC, 50/60 Hz input; 6 VDC at 2 A output.
- LED indicates sensing. The locking door prevents unauthorized access and roll removal.
Installation and power
Allow a minimum rough wall opening of 15-3/4" W x 26" H x 10" D. Provide adequate in-wall reinforcement for drywall or suitable anchors for other wall conditions. Mount through the concealed holes with #10 self-threading screws; reinforcement, anchors, and screws are by others. Provide code-approved cable or conduit to the supplied utility duplex outlet box inside the cabinet, and protect the 110–240 VAC, 50/60 Hz supply with a 15A circuit breaker (by others).
For the manufacturer’s accessibility installation guidance, position the top of the towel opening no higher than 48" AFF; local requirements may set a lower limit, such as 40" AFF. Check applicable local requirements when locating the unit.
Refilling
Unlock the door to replace an empty or partially empty roll. When reloading a full roll while a partial roll remains, transfer the partial roll to the stub-roll position so dispensing can continue. Replenish the towel supply manually.
