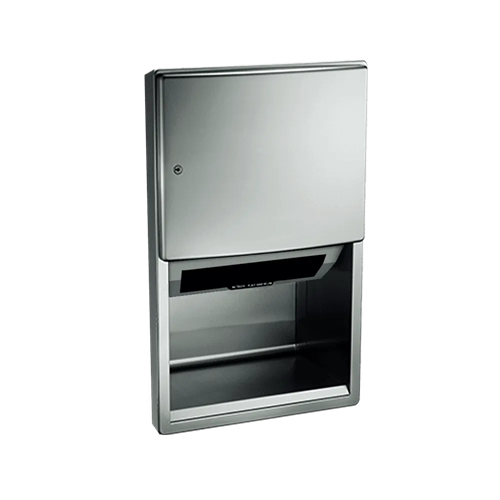

ASI 204523AC-6 Roval Semi-Recessed Automatic Roll Paper Towel Dispenser
This semi-recessed dispenser has a stainless steel collar and satin-finish Type 304 stainless steel construction: the door is 18 gauge, while the cabinet, frame, and collar are 22 gauge. It dispenses one towel length at a time when hands enter the sensor zone, continuing until the supply is depleted. Set towel length, delay, and economy using the three three-position switches. It accepts roll towels up to 800 ft. [244 m].
Installation and power
Provide a rough wall opening of 15-3/4 in. W x 26-1/4 in. H x 4-1/4 in. D minimum [400 x 667 x 108 mm]. Wall reinforcement in drywall, suitable anchors for other wall conditions, and #10 mounting screws are by others. Provide code-approved cable or conduit and a 15 A circuit breaker by others. The manufacturer specifies a utility duplex outlet box, provided inside the cabinet. The supplied low-voltage adapter operates from 110–240 VAC, 50/60 Hz and provides 6 VDC at 2 A.
For the manufacturer's stated accessibility guidance, install with the top of the towel opening no higher than 48 in. [1219 mm] above finished floor. The source notes that local codes may require a 40 in. [1016 mm] maximum, and gives 49–56 in. [1245–1422 mm] as general-utility placement.
Roll replacement and operation
Unlock the door to replace an empty or partly used roll. A full roll can start automatically after the existing partial roll is finished; transfer the partial roll to the stub-roll position when reloading. The LED indicates sensing, and the locking door prevents unauthorized access and roll removal. Replenish the towel supply manually as needed.
