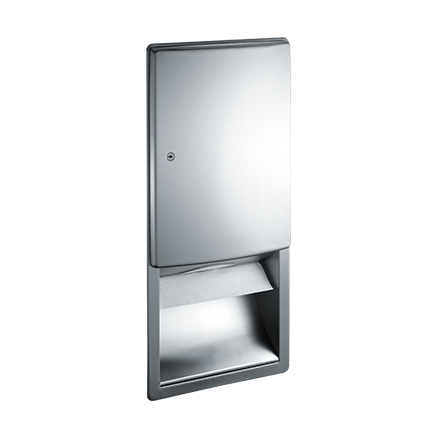

ASI 20452 Roval Recessed Paper Towel Dispenser
This manual, pull-type dispenser holds 600 C-fold or 800 multi-fold paper towels. Towels feed on user demand until the supply is depleted; a partial load can be added in place and will continue to feed. Replenish manually according to maintenance needs. The door is fabricated from 18-gauge Type 304 drawn one-piece stainless steel with a satin finish, and is secured with a concealed, multi-staked 3/16-inch piano hinge and flush tumbler lock.
Recessed installation
Plan for a rough-wall opening at least 11-1/4 inches wide by 26-1/2 inches high by 4 inches deep. The unit measures 12-3/4 inches wide by 28 inches high by 5-7/16 inches deep. Mount through the concealed holes using #10 screws, which are not included. The rough-wall opening's bottom is 3/4 inch above the bottom of the unit.
Manufacturer installation guidance specifies a towel-slot centerline no higher than 48 inches above finished floor for 2010 ADA Accessibility Standards, and 40 inches for CalDAG mounting height. Confirm mounting height for the project and applicable requirements.
