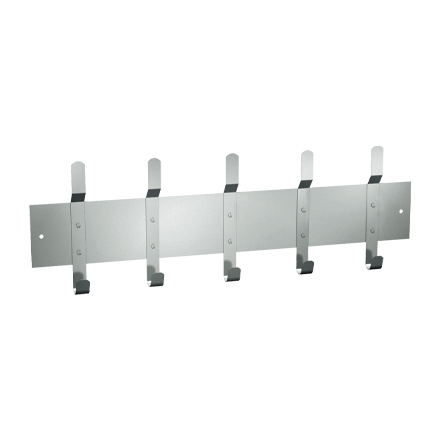

ASI 1307-5 Utility Hook Strip, 5 Hooks, Surface Mounted
The ASI 1307-5 is a 46-inch surface-mounted utility hook strip with five hooks. It is fabricated from 20-gauge Type 304 stainless steel with a satin finish.
Specifications
- Five hooks; 46 inches wide.
- Overall dimensions: 46 inches W x 9-3/4 inches H x 2-3/16 inches D. The product overview describes a 4-inch-high strip with 1/2-inch returns to the wall.
- Manufacturer-stated warranty: one year from invoice date.
Mounting guidance
For general utility use, ASI recommends mounting the unit 72 inches above finished floor (AFF), measured from the centerline of the mounting holes. For the manufacturer’s guidance referencing the 2010 ADA Accessibility Standards, install with the top of a hook no higher than 48 inches AFF. This is installation guidance, not a blanket compliance determination.
Mount the strip with #10 self-threading pan-head screws (by others) through its straight mounting holes into suitable anchors, blocking, or other wall reinforcement (by others) adequate to carry the intended load when all hooks are used.
