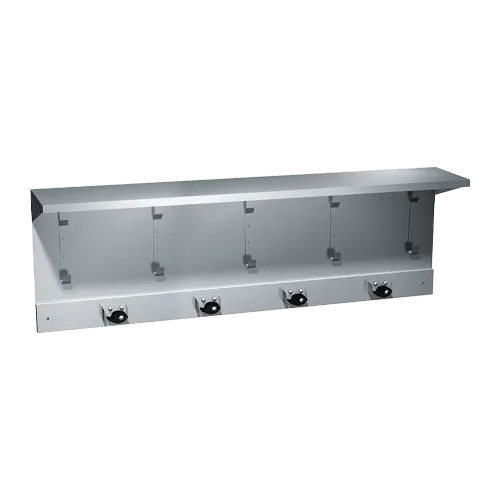

ASI 1308-4 Shelf, Utility Hook and Mop Strip
The ASI 1308-4 is a 44-inch surface-mounted shelf and mop strip with five utility hooks and four mop holders.
Specifications
- Overall dimensions: 44 inches wide x 14-1/2 inches high x 8 inches deep; shelf depth: 8 inches.
- Shelf: 18-gauge Type 304 stainless steel with a satin finish and 3/4-inch return.
- Utility hooks: five, made of 14-gauge stainless steel.
- Mop holders: four, riveted to the strip and made of cadmium-plated steel; ribbed rubber cams grip handles.
Use and installation
Push a mop or broom handle upward into the pivoting serrated rubber cam until it seats behind the rib on the clamp plate. A spring holds the cam against the handle, and gravity holds the mop in place. The shelf stores self-contained items; hang rags, mop heads, towels, or similar items on the hooks.
For general utility, the manufacturer specifies mounting the unit 66 inches above the finished floor, measured from the bottom of the mop strip. Attach it to the wall through the provided mounting holes with #10 self-threading pan-head screws; screws are by others.
