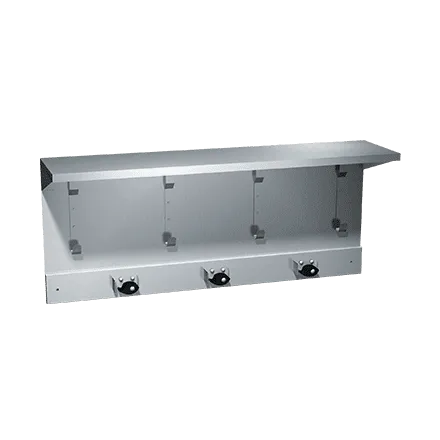

ASI 1308-3 Shelf, Utility Hook and Mop Strip
The ASI 1308-3 is a 34-inch surface-mounted custodial shelf and mop strip with four utility hooks and three mop holders. Its stainless steel shelf provides storage, while the holders grip mop or broom handles.
Specifications
- Overall dimensions: 34 x 14-1/2 x 8 inches; shelf depth: 8 inches.
- Shelf and strip: 18-gauge type 304 stainless steel with a 3/4-inch return; satin finish.
- Utility hooks: four, made of 14-gauge stainless steel.
- Mop holders: three, cadmium-plated steel with ribbed rubber cams.
- Surface-mounted; mounting screws are by others.
Operation and installation
Push a mop or broom handle upward into the pivoting cam until it seats behind the clamp-plate rib. A spring holds the cam against the handle, and gravity holds the mop in position. Use the hooks for rags, mop heads, or towels.
For general utility, the manufacturer specifies mounting the unit 66 inches above the finished floor, measured from the bottom of the mop strip. Install through the provided mounting holes with #10 self-threading pan-head screws; screws are by others.
