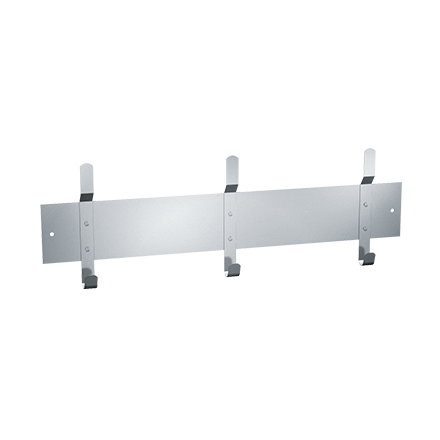

ASI 1307-3 Utility Hook Strip
This surface-mounted strip has three hooks spaced on 10-inch centers along its 26-inch length. It is fabricated from 20-gauge Type 304 stainless steel with a satin finish. The strip is 4 inches high, with edges returning 1/2 inch to the wall; overall dimensions are 26 inches wide by 9-3/4 inches high by 2-3/16 inches deep.
For general utility use, the manufacturer specifies mounting the unit 72 inches above the finished floor, measured from the centerline of the hook-strip mounting holes. The manufacturer's guidance for the 2010 ADA Accessibility Standards is to install it with the top of a hook no more than 48 inches above the finished floor; this is installation guidance, not a blanket compliance guarantee.
Mount with #10 self-threading pan-head screws through the strip's mounting holes into suitable anchors, blocking, or other wall reinforcement adequate for the intended load when the hooks are fully used. Screws and wall supports are by others.
