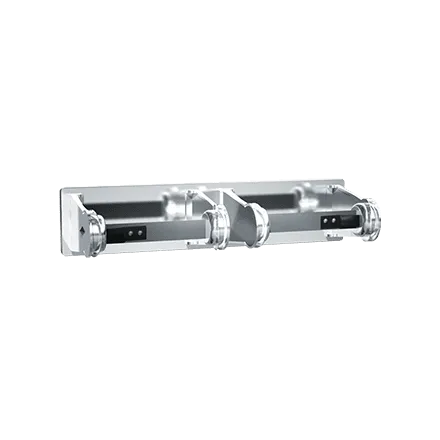

ASI 0715 Double-Roll Surface-Mounted Toilet Tissue Holder
The ASI 0715 is a surface-mounted holder for two standard-core toilet tissue rolls, each up to 6 inches in diameter and 4-1/8 to 4-3/4 inches wide. Its brake springs allow free paper delivery while helping prevent roll-off from a fast pull.
Capacity and construction
- Holds two standard-core rolls; each roll remains in place until depleted.
- Fabricated from 18-gauge polished chrome-plated steel.
- Overall dimensions: 12-3/8 inches wide x 2-3/4 inches high x 4-1/4 inches deep.
- Roll replacement frequency depends on maintenance needs.
Installation and roll replacement
For general utility, the manufacturer recommends mounting the holder with its center line 32 inches above the finished floor. Secure it through the back-plate slots with two #10 self-threading screws, supplied by others. For the manufacturer’s stated 2010 ADA and 2015 ABA installation guidance, position the roll center line 7 to 9 inches in front of the water closet and the roll outlet 15 to 48 inches above the finished floor; confirm placement for the project and applicable requirements. To replace a roll, remove its core to access the release catches, then swing the end support arms away.
