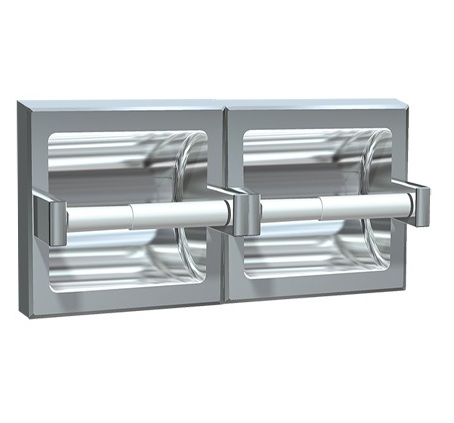

ASI 74022-SSM Surface-Mounted Double Toilet Tissue Holder
The ASI 74022-SSM is a satin-finish, surface-mounted holder for two standard-core toilet tissue rolls up to 6 inches in diameter. Its spring-loaded spindles revolve freely and retain each roll until the core is removed.
Specifications and installation
- Capacity: Two standard-core rolls, each up to 6 inches (152 mm) in diameter.
- Dimensions: 12-5/8 inches wide by 6-5/16 inches high by 2 inches deep (320 × 160 × 51 mm).
- Construction: Type 304 stainless steel, 18-8 alloy, with a satin finish; spring-loaded rollers are chrome-plated, high-impact-resistant ABS plastic.
- Mounting: Surface mounted. The manufacturer specifies two #10 stainless steel Phillips flat- or oval-head self-threading or wood screws, long enough to penetrate wall blocking by approximately 1/2 inch (13 mm).
- Manufacturer installation guidance: For installation following the cited 2010 ADA Accessibility Standards, position the roller centerline 19–42 inches (483–1067 mm) above the finished floor and 7–9 inches (178–229 mm) from the front of the commode. Confirm site requirements for the project.
