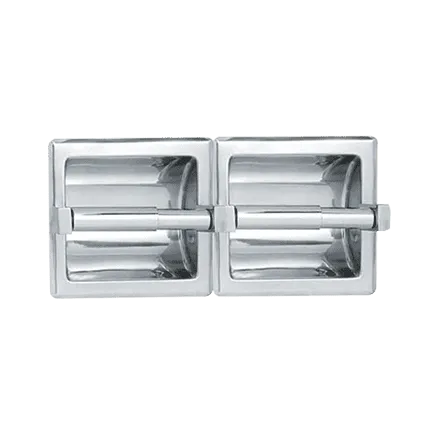

ASI 74022-S Recessed Double Toilet Tissue Holder
The ASI 74022-S is a satin-finish recessed holder for restrooms that need two standard-core toilet tissue rolls in a wall-mounted unit. It holds rolls up to 6 inches in diameter and has a Type 304 stainless steel, alloy 18-8, body.
Key specifications
- Overall face dimensions: 12-1/2 inches wide by 6-1/4 inches high.
- Capacity: two standard-core rolls up to 6 inches in diameter.
- Rollers: chrome-plated, high-impact-resistant ABS plastic; spring-loaded spindles revolve freely and hold rolls until the cores are removed.
- Mounting options: drywall holes or wet-wall lugs; a Model 39 drywall clamp is available separately. No clamp is required for wet-wall lugs.
- Optional theft-resistant spindle guard: order Model R-009 separately.
- Warranty: one year from date of invoice.
Plan the recessed installation
For standard drywall mounting, use two #10 stainless steel screws of suitable length to penetrate blocking by approximately 1/2 inch; the screws and silicone sealant are by others. The separate Model 39 drywall clamp is an optional mounting method. For wet-wall mounting, set the unit in grout and allow the grout to cure before use; the manufacturer states that no clamp is required for wet-wall lugs.
The manufacturer gives 2010 ADA accessibility installation guidance of 19 to 42 inches from the finished floor to the roller centerline and 7 to 9 inches from the front of the commode to the dispenser centerline. This guidance is not a guarantee of compliance for a particular installation.
