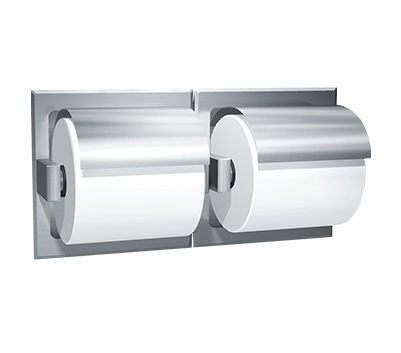

ASI 74022-HS Recessed Double Toilet Tissue Holder
This satin-finish holder has a hood and holds two standard-core toilet tissue rolls up to 6 inches in diameter. It is fabricated from Type 304, 18-8 stainless steel. The spring-loaded roller is chrome-plated, high-impact-resistant ABS plastic; the spring-loaded spindles revolve freely and hold rolls until their cores are removed.
The required rough wall opening is 11-3/4 inches wide by 5-1/2 inches high by 2 inches deep minimum. For standard drywall mounting, the manufacturer specifies two #10 screws (by others) that penetrate blocking, plus silicone sealant (by others). A Model 39 drywall clamp is a separate optional installation method. The manufacturer also describes wet-wall mounting with grout and the unit's lugs.
For 2010 ADA Accessibility Standards positioning, the manufacturer specifies the roller centerline at 19 to 42 inches above finished floor and 7 to 9 inches from the front of the commode. These are manufacturer installation guidelines, not a blanket compliance determination.
