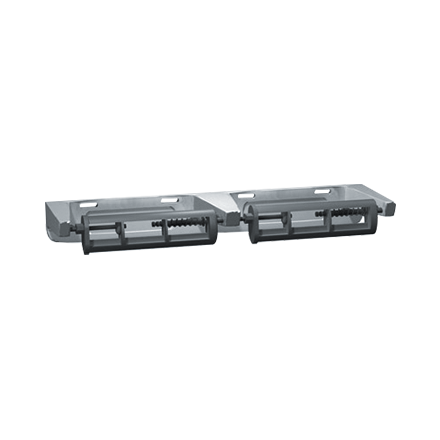

ASI 0264-1 Double Toilet Tissue Holder
This surface-mounted double dispenser has a heavy-duty cast aluminum body with a satin matte silver-gray finish and two no-waste rocking-action spindles made of Cycolac ABS thermoplastic. It holds two standard-core rolls up to 6 inches (152 mm) in diameter (2,000 sheets).
The spindles operate independently, turning one-half revolution per use and returning to their original position. A roll core blocks access to the release pin, so a roll cannot be removed until it is exhausted. To replenish, release the concealed pin to disengage the spindle’s spring lock.
Installation
Mount to a wall or partition with #10 self-threading screws, which are not included. The holder measures 13 inches W x 1-3/4 inches H x 4-3/4 inches D. Manufacturer guidance for installation under 2010 ADA Accessibility Standards is to position the tissue-roll centerline between 19 and 44 inches above the finished floor.
