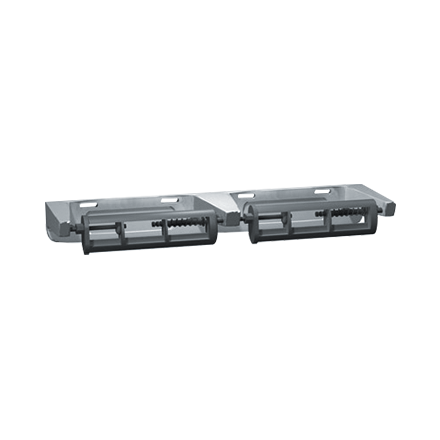

ASI 0264-1A2 Double Toilet Tissue Holder
The ASI 0264-1A2 is a surface-mounted holder for two standard-core toilet tissue rolls up to 6" in diameter. Its theft-resistant, controlled-delivery spindles are secured by concealed set screws, distinguishing it from the unrestricted-delivery ASI 0264-1A.
Specifications
- Capacity: two standard-core rolls up to 6" in diameter; the manufacturer’s spec sheet also lists 2000 sheets.
- Dimensions: 13" W x 1-3/4" H x 4-3/4" D.
- Construction and finish: heavy-duty cast aluminum with a satin-matte silver-grey finish.
- Mounting: surface-mounted on a wall or partition.
- Warranty: one year from date of invoice.
Installation and roll replacement
Mount with #10 self-threading screws, supplied by others. The manufacturer recommends a mounting height of 32" from the holder centerline above the finished floor. Its stated 2010 ADA Accessibility Standards installation guidance places the tissue-roll centerline between 19" and 44" above the finished floor.
The spindles rotate freely. A roll core prevents access to the release pin, and the tissue cannot be removed from a spindle until it is exhausted and the concealed set screw is loosened with a key. To replenish, release the concealed pin to operate the spindle’s spring lock.
