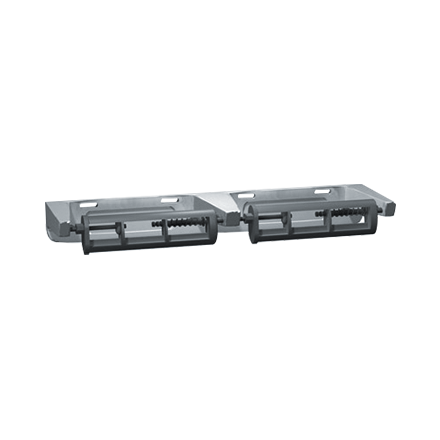

ASI 0264-1A Double Toilet Tissue Holder
The ASI 0264-1A is a surface-mounted double toilet tissue holder with an unrestricted-delivery spindle. Its cast-aluminum construction has a satin-matte silver-grey finish.
Specifications
- Capacity: two standard-core rolls, each up to 6" in diameter; the manufacturer’s spec sheet also lists 2000 sheets.
- Dimensions: 13" W x 1-3/4" H x 4-3/4" D.
- Mounting: surface-mounted on a wall or partition.
- Warranty: one year from date of invoice.
Installation and roll replacement
Mount with #10 self-threading screws, supplied by others. For guidance regarding the 2010 ADA Accessibility Standards, the manufacturer specifies a tissue-roll centerline between 19" and 44" above the finished floor.
The spindles revolve freely. A roll core prevents access to the release pin until the roll is exhausted. To replenish, release the concealed pin to operate the spring lock and remove the spindle.
