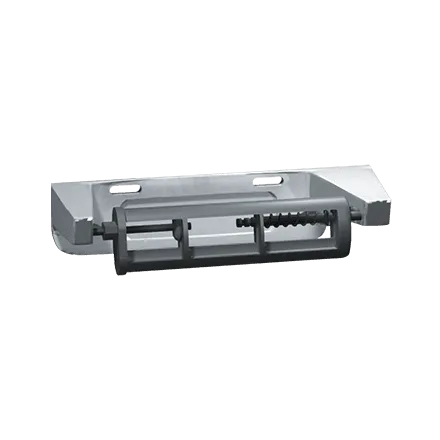

ASI 0263-1 Surface-Mounted Controlled-Delivery Toilet Tissue Holder
This single-roll holder accepts standard-core toilet tissue up to 6 inches (152 mm) in diameter. Its heavy-duty aluminum casting has a satin-matte, silver-grey powder-coated finish. Overall dimensions are 6-1/2 inches W x 1-3/4 inches H x 4 inches D.
Controlled delivery and replacement
The spindle turns one-half revolution per operation and returns to its starting position. The roll core blocks access to the release pin, so the roll cannot be removed from the spindle until it is exhausted. To replenish the unit, release the concealed pin to disengage the spindle's spring lock.
Installation
The holder surface-mounts to a wall or partition with self-threading screws supplied by others. ASI's guidance for the 2010 ADA Accessibility Standards is to install it with the tissue-roll centerline between 19 inches minimum and 44 inches maximum above the finished floor.
