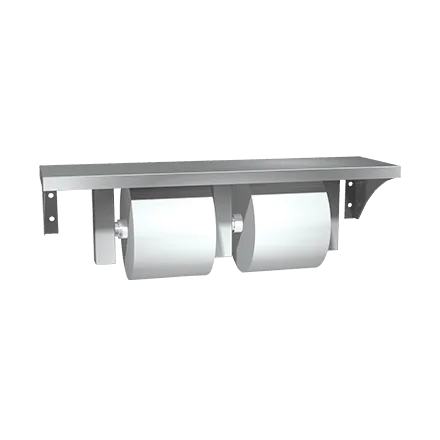

ASI 0697-GAL Double Toilet Tissue Holder with Shelf
The ASI 0697-GAL is a surface-mounted double-roll toilet tissue holder with a 5 x 18 in. stainless steel shelf. It holds two rolls up to 5 in. in diameter, including 1,500-sheet rolls, and self-feeds tissue on user-pull demand until the supply is depleted.
Capacity and construction
- Holds two 5 in. diameter rolls of 1,500 sheets or standard-core toilet tissue rolls up to 5 in. in diameter.
- Two spring-loaded, free-rolling rollers are supplied; they are molded from high-impact-resistant polystyrene.
- The 5 x 18 in. shelf is Type 304 stainless steel with a satin finish and a 5/8 in. hemmed front lip.
- All metal parts are 18 gauge.
- Overall dimensions: 18 in. W x 4-3/16 in. H x 5 in. D.
Installation and placement
The unit mounts to a wall or partition using #10 self-threading screws through the support-bracket holes; screws are by others. The manufacturer’s placement guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards specifies the nearest roll-holder centerline 7–9 in. from the front of the toilet and the roll axis 15–23 in. above finished floor. For general utility, the recommended mounting height is 32–36 in. above finished floor.
