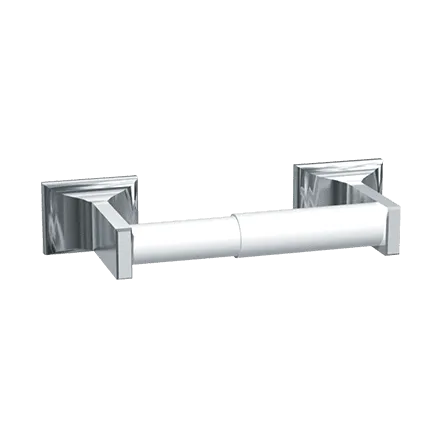

ASI 0705-Z Zamak Single Toilet Tissue Holder
The ASI 0705-Z is a surface-mounted, single-roll tissue holder with a removable, spring-tension roller for loading standard-core tissue.
Product details
- Fabricated from triple chrome-plated, rust-resistant Zamac.
- Holds one standard-core toilet tissue roll; the plastic roller has an internal spring for tension and removes from the brackets for loading.
- Dimensions: 7-15/16" W x 1-7/16" H x 3-1/8" D (202 x 37 x 79 mm).
- Surface mounted; two wall anchors are provided. The manufacturer specifies two #8 pan-head mounting screws, selected to suit wall conditions, as provided by others.
- Roll-holder posts are theft resistant when tempered hardened stainless steel set screws are installed and tightened into the brackets.
Installation guidance
Mount each wall bracket with two screws through its provided holes, then place the roll-holder posts over the brackets and secure them with the underside set screws. Manufacturer installation guidance for the 2010 ADA Accessibility Standards places the tissue-roll centerline between 19" and 44" above the finished floor; verify the project requirements for the specific installation.
Manufacturer warranty: one year from invoice date.
