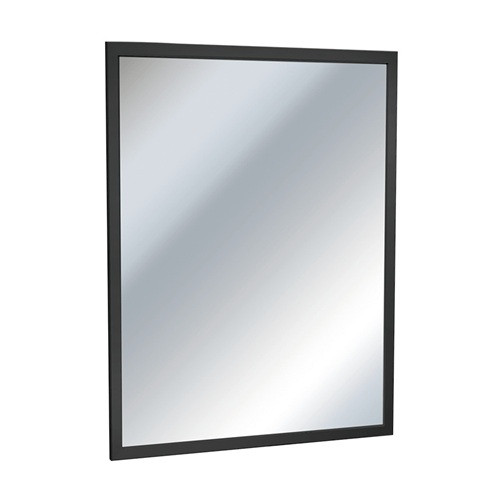

ASI 0600-2448-41 Matte Black Angle-Frame Mirror, 24 x 48 inches
The ASI 0600-2448-41 is a surface-mounted, 24" W x 48" H plate-glass mirror. Its 3/4" x 5/8" (19 x 16 mm) roll-formed, 18-gauge Type 304 stainless steel angle frame has heliarc-welded corners, ground and polished smooth, with a matte-black powder-coated finish.
Specifications and mounting
- Mirror: 1/4" plate glass, warranted against silver spoilage for 15 years from the invoice date.
- Mounting: Concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws.
- Back plate: One piece, attached to the frame with a theft-resistant locking device.
Installation guidance
Install the bracket level and plumb using #10 self-threading screws (by others), hang the mirror, then tighten the top and bottom locking screws. For the referenced 2010 ADA Accessibility Standards and 2015 ABA Standards, the manufacturer advises that the bottom edge of the reflecting surface should be no higher than 40" above finished floor.
