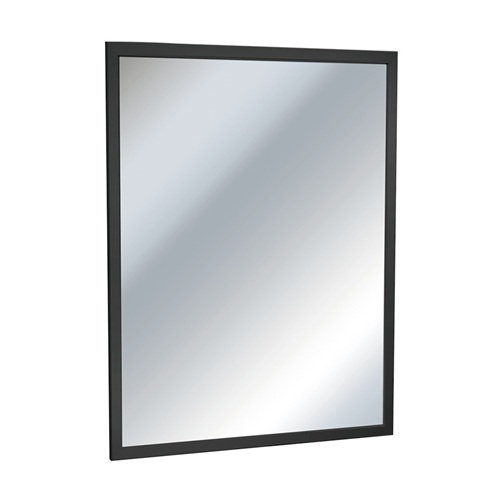

ASI-0600-2436-41 Matte Black Angle-Frame Mirror
This surface-mounted mirror measures 24" W x 36" H. Its 3/4" x 5/8" (19 x 16 mm), 18-gauge Type 304 stainless steel angle frame has heliarc-welded corners, ground and polished smooth, with a matte black powder-coated finish. The plate-glass mirror hangs on a concealed bracket that locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches to the frame with a theft-resistant locking device.
Install the bracket level and plumb using #10 self-threading screws (by others), then hang the mirror and tighten the top and bottom locking screws. The manufacturer's guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards says the reflecting surface's bottom edge should be no higher than 40" above the finished floor; confirm project requirements. The mirror is warranted against silver spoilage for 15 years from the invoice date.
