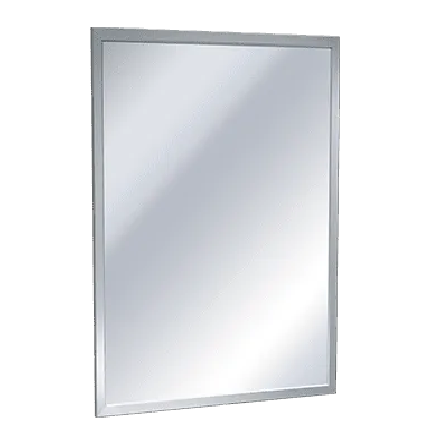

ASI 0600-1630 Stainless Steel Angle Frame Mirror
The ASI 0600-1630 is a 16 x 30 inch surface-mounted angle frame mirror with standard 1/4-inch plate-glass glazing and a satin-finish Type 304 stainless steel frame. Its concealed hanging bracket locks at the top and bottom with tamper-proof set screws.
Specifications
- Overall size: 16 inches wide x 30 inches high.
- Frame: 3/4 x 5/8 inch roll-formed, 18-gauge Type 304 stainless steel angle; heliarc-welded corners are polished smooth to a satin finish.
- Standard mirror glazing: 1/4-inch plate glass.
- One-piece back plate attaches to the frame with a theft-resistant locking device.
- Plate glass is warranted against silver spoilage for 15 years from the invoice date.
Mounting and placement
Install the bracket level and plumb using #10 self-threading screws (by others), hang the mirror, then tighten the locking screws at the top and bottom. ASI’s manufacturer guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards specifies positioning the bottom edge of the reflecting surface no higher than 40 inches above the finished floor; this is installation guidance, not a blanket compliance guarantee.
