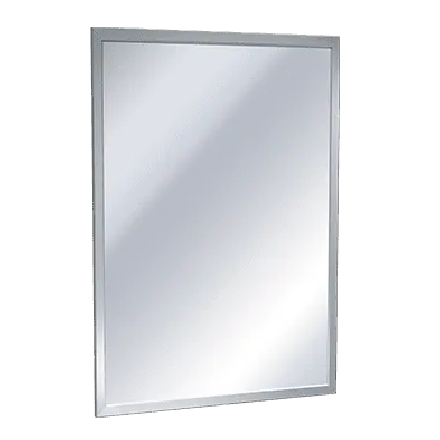

ASI 0600-2430 Satin-Finish Angle Frame Mirror
This 24 x 30 in. surface-mounted mirror has a plate glass mirror and a roll-formed 18-gauge type 304 stainless steel angle frame measuring 3/4 x 5/8 in. The heliarc-welded corners are ground and polished smooth to a uniform satin finish.
A concealed hanging bracket locks onto the top and bottom of the frame with tamper-proof set screws. The one-piece back plate is attached to the frame with a theft-resistant locking device.
For installation, mount the bracket level and plumb using #10 self-threading screws (by others), hang the mirror, and tighten the top and bottom locking screws.
