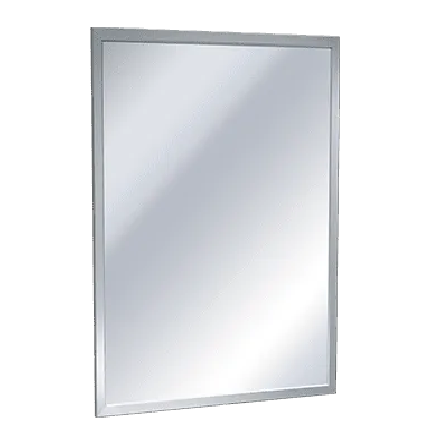

ASI 0600-1824 Angle Frame Mirror
This 18 x 24 inch surface-mounted mirror has standard plate-glass glazing and a satin-finish frame made from roll-formed 18-gauge Type 304, alloy 18-8 stainless steel. The frame corners are heliarc-welded and polished smooth. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Install the bracket level and plumb using #10 self-threading screws (by others), then hang the mirror and tighten the locking screws at the top and bottom. Manufacturer guidance for the cited 2010 ADA Accessibility Standards and 2015 ABA Standards is to place the bottom edge of the reflecting surface no higher than 40 inches above the finished floor.
