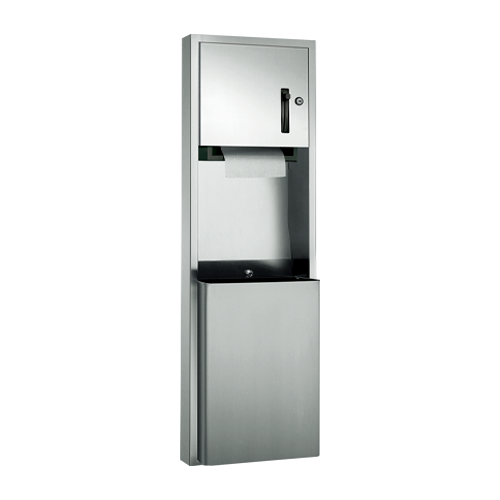

ASI 04692-6 Traditional Semi-Recessed Roll Paper Towel Dispenser and Waste Receptacle
The ASI 04692-6 is a semi-recessed combination dispenser and waste receptacle for commercial restrooms with a suitable wall recess. Its 6-inch stainless steel collar finishes the recessed installation; the removable waste receptacle holds 18 gallons.
Specifications and operation
- Overall dimensions: 17-1/4 inches W x 56 inches H x 11-3/4 inches D; verify the unit and rough opening fit the available wall space.
- Required minimum rough wall opening: 15-3/4 inches W x 54-1/2 inches H x 4 inches D.
- Dispenses standard 8- or 9-inch-wide towel rolls up to 800 feet long. It accepts a stub roll, and a full roll loaded while a partial roll remains starts automatically after the partial roll is finished.
- Lever-operated towel feed; the supplied pin limits lever stroke to adjust feed length.
- Type 304 stainless steel with a satin finish. The locking compartment and receptacle retainer deter unauthorized access or removal.
Installation and servicing
Install in the wall recess with four #10 self-threading screws through the concealed mounting holes; screws are by others. The suggested lever-handle mounting height is 55 inches above finished floor. The manufacturer directs users seeking reduced-height installation with a 6-inch curb and 2010 ADA Accessibility Standards guidance to Models 0463 or 046921 series; this is installation guidance, not a blanket compliance claim.
Reload through the locking compartment and empty the waste receptacle manually according to maintenance needs.
