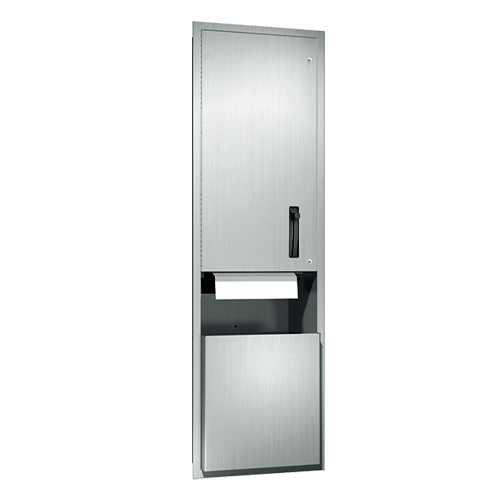

ASI 046921 Roll Towel Dispenser and Waste Receptacle
The ASI 046921 mechanically dispenses standard 8- or 9-inch-wide roll towels up to 800 feet long and has a 13.3-gallon (50.4 L) waste capacity. It includes a stainless steel collar and stub-roll capability.
Operation and specifications
- Towel feed: Depress the lever to dispense towels. A supplied pin limits lever travel to adjust the feed length.
- Stub-roll operation: Load a full roll while a partial roll remains in use; dispensing resumes from the full roll when the partial roll is depleted.
- Construction: Cabinet, frame, and waste container are 22-gauge Type 304 stainless steel. The dispenser door and mechanism back plate are 18-gauge Type 304 stainless steel. Exposed surfaces have a satin finish.
- Waste servicing: The waste container is emptied manually according to maintenance needs.
Installation
Provide a minimum rough wall opening 15-3/4 inches wide by 54-1/2 inches high. Mount through the concealed holes using #10 self-threading screws (by others). The top of the rough wall opening is 3/4 inch below the top of the unit.
