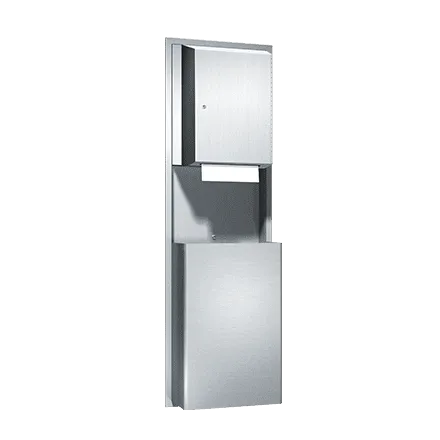

ASI 046926 Semi-Recessed Roll Towel Dispenser and Waste Receptacle
This Type 304 stainless steel cabinet with satin finish holds one towel roll up to 8 inches in diameter by 8 inches wide and one 3-inch-diameter by 8-inch-wide stub roll. The pull-towel autocut dispenser dispenses a single full-width, 12-inch-long towel and automatically changes from the depleted stub roll to the new roll. Roll capacity is up to 800 feet. The waste receptacle holds 13.5 gallons (52 liters).
Installation and service
The minimum rough wall opening is 15-3/4 inches wide by 54-1/2 inches high by 4 inches deep. Install in the wall recess through the concealed mounting holes using #10 self-threading screws (by others); the top of the rough opening is 3/4 inch below the top of the unit. For the manufacturer's 2010 ADA Accessibility Standards installation guidance, set the towel dispenser lever no higher than 48 inches above finished floor.
Open the cabinet door to load towels following the supplied instructions. Empty the waste container manually as needed; the compartment and receptacle retainer are locked to help prevent unauthorized access or removal.
