ASI-0464-50

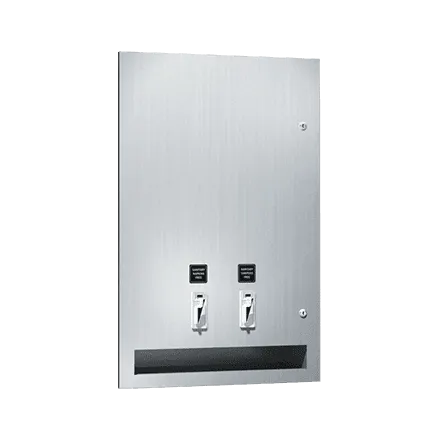

This semi-recessed vendor has separate mechanisms for 30 feminine napkins and 27 tampons. Model -50 is configured for 50¢ operation; the 0464 series is also available in 25¢ (-25) and free-vend (-F) versions. The adjustable flange accommodates wall depths from 1" to 6" (25 to 152 mm).

The door is 18-gauge Type 304 stainless steel; the cabinet and adjustable trim flange are 22-gauge Type 304 stainless steel. Two tumbler locks retain the door.

ASI 0464 Dual Dispenser Spec Sheet

Installation and servicing

Plan a rough wall opening of 12-1/2" W x 26-1/2" H, with a recess depth from 1" to 6". Mount with four #10 self-threading screws through the cabinet’s concealed rear holes; screws are by others, and the installer must provide adequate wall anchoring. The trim flange slides against the wall to cover the rough-opening edges.

Napkin and tampon mechanisms operate independently. Refill by opening the door and loading the supply tracks; track weights must be used for positive feed. When either supply is depleted, its indicator shows empty and blocks that coin slot until the unit is refilled. The source specifies single, cardboard-boxed napkins and cardboard cylinder tampons in listed package sizes, so confirm product packaging before stocking.
