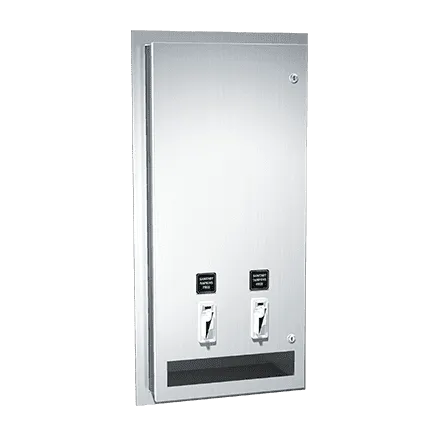

ASI 0464-25 Semi-Recessed Napkin and Tampon Vendor
The ASI 0464-25 is a semi-recessed dual vendor with separate mechanisms for 30 feminine napkins and 27 tampons. This suffix configuration accepts 25-cent coins; the 50-cent (-50) and free-operation (-F) versions are separate models.
Capacity, fit, and construction
- Capacity: 30 napkins and 27 tampons, dispensed through independent mechanisms.
- Napkin fit guidance: single, cardboard-boxed napkins with a semigloss finish; box size 4-1/4 x 3 x 1-1/8 in. Manufacturer-listed examples are Stayfree #4, Guards #247 or #147, Kotex #704, #707, #07010, #07040, #07045, #07300, or #07320, Pure-Nat #M-4, and Modess #4.
- Tampon fit guidance: cardboard tubes with crimped ends, 3/4-in. diameter x 5-1/4 in. Manufacturer-listed examples are Tampax #T500 and Modess Tampons.
- The adjustable flange fits wall recess depths from 1 to 6 in.; required rough wall opening is 12-1/2 in. W x 26-1/2 in. H x 1 to 6 in. D.
- Door: 18-gauge Type 304 stainless steel; cabinet and trim flange: 22-gauge Type 304 stainless steel. Satin finish.
- Mounting: four #10 self-threading screws through concealed cabinet holes; screws are by others, and adequate wall anchoring must be provided.
Refilling and installation guidance
After a coin deposit and operator actuation, the selected product drops into the vending opening. When either product supply is depleted, its indicator displays empty and blocks the coin slot; refill manually through the open door and use the track weights for positive feed. The empty indicator resets automatically after refilling. Coins are retrieved from a cash drawer with a different key from the service-door key. Refill on a schedule determined by maintenance needs.
ASI's manufacturer installation guidance recommends positioning the coin slot between 38 and 48 inches above finished floor for usability and accessibility. This is installation guidance, not a guarantee of site compliance.
