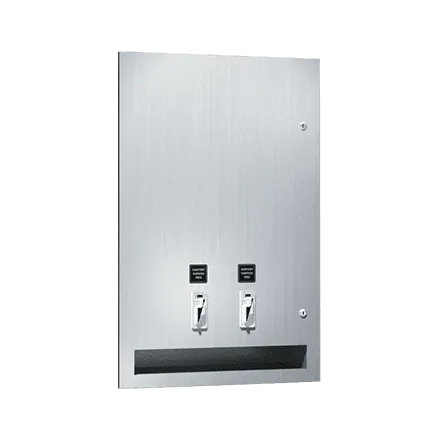

ASI 6468-25 Simplicity Recessed Dual Napkin and Tampon Vendor
The ASI 6468-25 is a recessed dual vendor configured for 25¢ operation. It holds up to 30 feminine napkins and 27 tampons, with independently operated dispensers. The related 6468-50 model allows 50¢ operation, and the 6468-F allows free operation.
Capacity, construction, and fit
- Capacity: 30 boxed napkins and 27 cylindrical, cardboard-packaged tampons. The manufacturer lists napkin boxes measuring 4-1/4" x 3" x 1-1/8" and tampon tubes measuring 3/4" diameter x 5-1/4".
- Type 304 stainless steel with a satin finish; unit dimensions are 17-1/4" W x 27-1/4" H x 4-1/2" D.
- Minimum rough wall opening: 16" W x 26" H x 6-1/4" D.
- The door has two tumbler locks; the coin box has a separately keyed lock. The door locks are keyed alike to other ASI washroom equipment.
After the specified coin is deposited, actuating a dispenser drops the selected product into the vending opening. An indicator displays an empty condition and blocks the coin slot when that product is depleted. To refill, open the door and reload the supply tracks manually; track weights must be used for positive feed.
Recessed installation
Mount the unit in the wall recess with four #10 self-threading screws, supplied by others. For maximum usability, the manufacturer’s installation guidance places the coin slot 38" to 54" above the finished floor, referencing the 2010 ADA Accessibility Standards; this guidance is not a blanket compliance determination. The manufacturer lists a one-year warranty from the invoice date.
