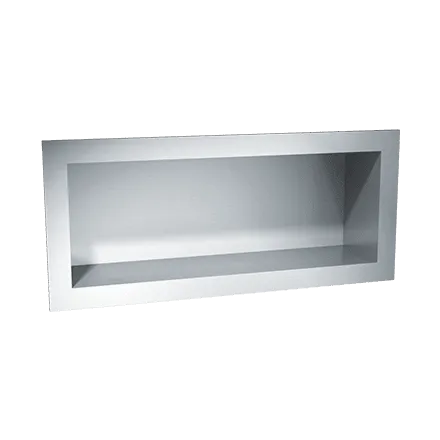

ASI 0412 Recessed Shelf
This recessed shelf is made of spot-welded 22-gauge Type 304 stainless steel with a satin finish. Overall dimensions are 18" W x 8" H x 4-1/4" D (457 x 203 x 108 mm). The shelf is stationary after installation.
Plan for a minimum rough wall opening of 16-5/16" W x 6-5/8" H x 4" D (414 x 168 x 102 mm). Mount through the concealed dimpled holes using two #10 x 1-1/2" flat- or oval-head self-threading screws; screws are not included. ASI specifies shimming as needed to level and support the sides during installation.
