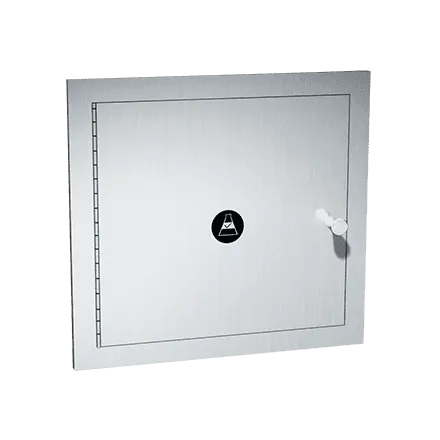

ASI 8154 Recessed Specimen Pass Box
The ASI 8154 creates a controlled pass-through between a patient area and a laboratory. Its internal latch prevents both doors from opening at the same time, while the removable stainless steel drip tray supports routine cleaning.
Key Features
- 20-gauge Type 304 stainless steel with a satin finish
- Overall dimensions: 13-1/4 inches wide x 12-3/4 inches high x 6 inches deep
- Internal interlock prevents simultaneous door opening
- Removable stainless steel drip tray
- Two rubber door silencers
- Recessed installation through the partition
Wall and Rough-Opening Requirements
The adjustable flange accommodates walls from 1-3/4 to 5-1/2 inches thick. The required rough wall opening is 11-1/2 inches wide x 11 inches high, with a depth from 1-3/4 to 5-1/2 inches. Verify the partition depth and opening before ordering or beginning installation.
