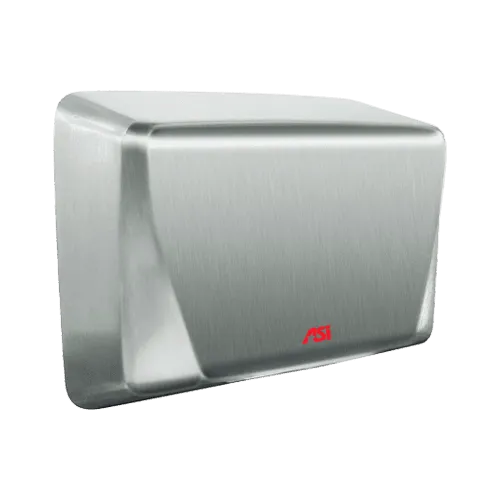

ASI 0199-1-93 TURBO ADA Surface-Mounted High-Speed Hand Dryer
The ASI 0199-1-93 is the satin-finish, Type 304 stainless-steel version of the surface-mounted TURBO ADA dryer, configured for a 110–120 VAC supply. Its infrared sensor starts the dryer without touch. ASI specifies drying in less than 15 seconds, with owner-adjustable air speed and temperature.
Model 0199-1-93 specifications
- Cover: 18-gauge Type 304 stainless steel with satin finish.
- Dimensions: 10-5/8 × 8-15/32 × 4 in. (270 × 215 × 102 mm); surface mounted.
- Electrical: 110–120 VAC, 50/60 Hz; 10.4 A maximum; 1,000 W maximum.
- Motor: 0.67 HP brush-type motor with dual ball bearings; adjustable speed.
- Operation: Infrared automatic activation, auto-resetting thermal protection, and automatic shutoff when hands leave the sensor zone or the 60-second timer reaches its limit. On this 110–120 V version, the heater can be switched on or off.
- Performance: Less than 15-second drying time; sound pressure 68.9 dB-A minimum to 74.3 dB-A maximum at 2 m.
- Warranty: Five years from invoice date.
Installation and upkeep
ASI specifies installation by a qualified electrician. For the stated adult accessibility placement, install with the bottom of the sensor lens no higher than 48 in. above finished floor where reach is unobstructed, or 44 in. where the specified forward reach over an obstruction applies. Confirm the applicable conditions and follow the supplied installation guidance. For cleaning, disconnect power, remove lint from inside, and wipe the cover with a damp cloth and mild cleaning solution; do not soak or use abrasives.
