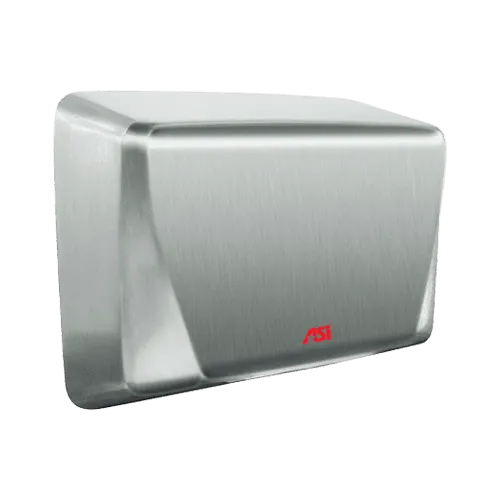

ASI 0199-2-93 TURBO ADA Surface-Mounted High-Speed Hand Dryer

The ASI 0199-2-93 is a satin-finish Type 304 stainless-steel, surface-mounted automatic hand dryer for facilities with a 208–240 VAC supply. Its infrared sensor starts drying without touch, and ASI specifies drying in less than 15 seconds.

Model 0199-2-93 specifications

• Electrical: 208–240 VAC, 50/60 Hz; 5.2 A maximum; 1,000 W.
• Air and drying: 63.6 CFM airflow; owner-adjustable air speed and temperature; less than 15-second drying time.
• Operation: Infrared automatic activation; auto-resetting thermostat; shuts off when hands leave the sensor zone, with a 60-second automatic timeout.
• Motor: 0.67 HP adjustable brush-type motor with dual ball bearings.
• Construction and size: Type 304 stainless steel with satin finish; surface-mounted; 10-5/8 × 8-15/32 × 4 in. (270 × 215 × 102 mm).
• Other ratings: Drip-proof IP24 design; sound pressure 68.9 dB-A minimum / 74.3 dB-A maximum at 2 m; five-year warranty from invoice date.

Installation and use

Confirm the site provides a 208–240 VAC circuit before selection; the 0199-2-93 is not the 115–120V or 277V version. ASI specifies installation by a qualified electrician. Its installation guidance says to position the bottom of the sensor lens no higher than 48 in. (1219 mm) above finished floor for unobstructed adult reach, or 44 in. (1118 mm) where the specified forward reach over an obstruction applies. Follow the supplied mounting template and installation guide for site conditions. During use, place hands beneath the sensor; the dryer starts automatically and stops when hands are removed from its sensing zone.

ASI identifies the model as ADA-compliant and provides the placement guidance above; accessibility depends on installation and site conditions.
