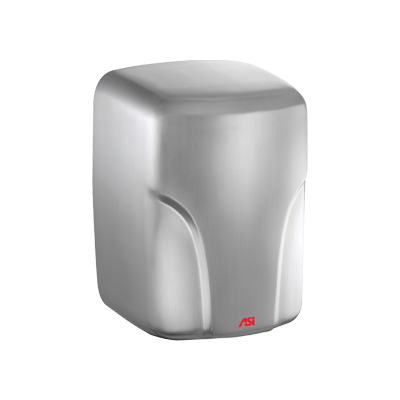

ASI 0197-2-93 TURBO-Dri High-Speed Hand Dryer
The ASI 0197-2-93 is a surface-mounted, touch-free TURBO-Dri hand dryer with a satin Type 304 stainless steel finish. It dries in under 15 seconds and has owner-adjustable air speed and heat. Because the manufacturer sheet lists different voltage ranges in its feature summary and electrical table, confirm the required supply for this model with the manufacturer’s current documentation before ordering or installation.
Specifications and operation
- Drying and airflow: less than 15 seconds; 63.6 CFM (108 m³/h).
- Noise: 65 dB-A minimum / 78 dB-A maximum.
- Construction: heavy-duty, one-piece-formed Type 304 stainless steel with satin finish.
- Dimensions: 8-1/16 × 11-19/64 × 7-5/64 inches (205 × 287 × 180 mm).
- Infrared no-touch activation; a blue sensor-array LED guides hand placement. The dryer stops when hands leave the sensor zone and has an automatic 60-second shut-off. Air speed and heat are owner-adjustable.
Installation: Surface-mount the unit using four 1/4-inch (6 mm) washers and screws or bolts (not supplied) through the back-plate holes, with hardware suitable for the wall. Electrical service is connected before the cover is installed; recessed pin-hex cover screws are supplied. The manufacturer’s installation guidance specifies the sensor-lens height for reach conditions: 48 inches maximum above finished floor (AFF) for unobstructed reach, or 44 inches maximum AFF when the stated forward-reach obstruction conditions apply. For general utility, the guidance gives 44–54 inches AFF. These are manufacturer installation instructions, not a blanket compliance determination.
The manufacturer lists a five-year warranty from invoice date and directs users to its Product Care & Maintenance Bulletin for cleaning instructions.
