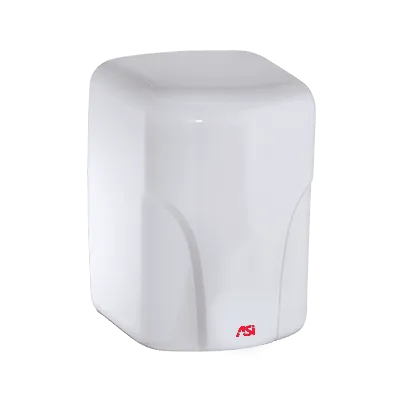

ASI 0197-1 TURBO-Dri High-Speed Hand Dryer
The ASI 0197-1 is a surface-mounted, touch-free hand dryer for commercial restrooms, configured for 110–120V service with a white porcelain enamel-on-steel housing. It provides high-speed drying in under 15 seconds, with owner-adjustable air speed and heat.
Specifications and operation
- Electrical: 110–120 VAC, 50/60 Hz; 14.6 A maximum; 1300–1600 W.
- Drying and airflow: less than 15 seconds; 63.6 CFM (108 m³/h).
- Noise: 65 dB-A minimum / 78 dB-A maximum.
- Dimensions: 8-1/16 × 11-19/64 × 7-5/64 inches (205 × 287 × 180 mm); heavy-duty, one-piece-formed construction.
- Infrared no-touch activation; a blue sensor-array LED guides hand placement. The dryer stops when hands leave the sensor zone and has an automatic 60-second shut-off. Air speed and heat are owner-adjustable.
Installation: Surface-mount the unit using four 1/4-inch (6 mm) washers and screws or bolts (not supplied) through the back-plate holes, with hardware suitable for the wall. Electrical service is connected before the cover is installed; recessed pin-hex cover screws are supplied. The manufacturer’s installation guidance specifies the sensor-lens height for reach conditions: 48 inches maximum above finished floor (AFF) for unobstructed reach, or 44 inches maximum AFF when the stated forward-reach obstruction conditions apply. For general utility, the guidance gives 44–54 inches AFF. These are manufacturer installation instructions, not a blanket compliance determination.
The manufacturer lists a five-year warranty from invoice date and directs users to its Product Care & Maintenance Bulletin for cleaning instructions.
