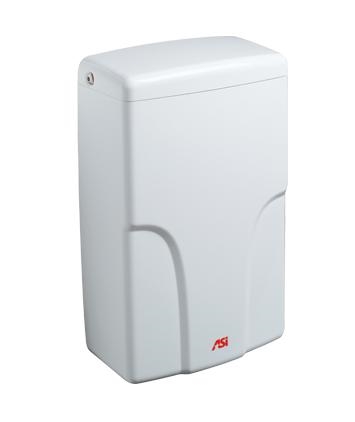

ASI 0196-1-00 Turbo-Pro High-Speed Hand Dryer
The ASI 0196-1-00 is the white-finish, 110–120V Turbo-Pro automatic hand dryer with a replaceable HEPA filter in a separate chamber, allowing filter access without disconnecting the dryer. The owner can adjust air speed and temperature; the manufacturer specifies drying in less than 15 seconds.
Specifications and operation
- Electrical: 110–120 VAC, 50/60 Hz; 8.33 A and 1,250 W.
- Dimensions: 8-5/8" W × 13-37/64" H × 4" D.
- Airflow: 32–42 CFM; manufacturer-listed automatic shutoff is 60 seconds.
- An IR sensor activates the dryer when hands enter the sensing zone; it shuts off when hands are removed. The sensor array has a blue LED to guide hand placement.
- The manufacturer specifies a five-year warranty against defects in materials or workmanship.
Installation guidance
Surface-mount the dryer to suitable wall mountings. Electrical service is supplied and connected by others before the cover is installed, and mounting hardware must suit wall conditions. For accessibility, the manufacturer’s installation guidance specifies the bottom of the sensor lens at no more than 48" AFF with unobstructed reach, or 44" AFF where forward reach over an obstruction has a reach depth greater than 20" and less than 25". Confirm the applicable mounting location before installation.
