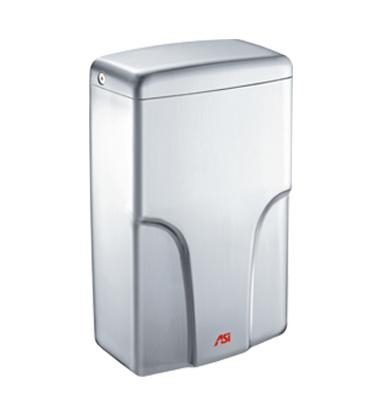

ASI 0196-1-93 Turbo-Pro High-Speed Hand Dryer with HEPA Filter
The ASI 0196-1-93 is the 110–120V Turbo-Pro hand dryer with a satin stainless steel cover. Its replaceable HEPA filter sits in a separate chamber and can be accessed without disconnecting the dryer. The owner can adjust air temperature and motor speed; the manufacturer specifies drying in less than 15 seconds.
Specifications and operation
- Electrical: 110–120 VAC, 50/60 Hz; maximum 8.33 A and 1,250 W.
- Dimensions: 8-5/8" W x 13-37/64" H x 4" D.
- IR sensor activation and automatic 60-second shutoff. A blue LED in the sensor array guides hand placement during operation; the dryer shuts off after hands are removed from the sensing zone.
- Five-year warranty against defects in materials or workmanship.
Installation and placement
Surface-mount the unit with the four supplied 1/4" washers and supplied screws or bolts through the back-plate holes into suitable prepared mountings. Wall-suitable mountings or other suitable hardware are by others. Electrical service and connection are by others and must be in place before installing the cover.
For accessibility, ASI's installation guidance specifies the bottom of the sensor lens at a maximum 48" AFF where reach is unobstructed, or a maximum 44" AFF where forward reach over an obstruction has a reach depth greater than 20" and less than 25". For general utility, the manufacturer specifies 44"–54" AFF. Confirm placement for the site's reach conditions and consult the supplied instructions.
