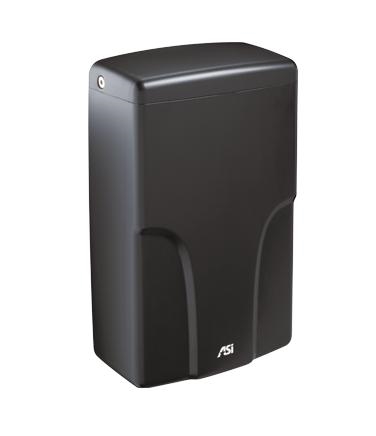

ASI 0196-1-41 Turbo-Pro High-Speed Hand Dryer
The ASI 0196-1-41 is the 110–120 VAC, matte black Turbo-Pro hand dryer. This surface-mounted, touch-free model has a powder-coated steel cover and a replaceable HEPA filter in a separate chamber; the filter can be accessed without disconnecting the dryer. Owners can adjust air speed and heat, and the manufacturer specifies drying in less than 15 seconds.
Specifications and operation
- Electrical: 110–120 VAC, 50/60 Hz; maximum 8.33 A and 1,250 W.
- Dimensions: 8-5/8 inches W × 13-9/16 inches H × 4 inches D.
- Automatic operation with a 60-second shutoff. The sensor-array LED shines blue during operation to guide hand placement; the dryer shuts off after hands are removed from the sensing zone.
- Manufacturer-listed sound levels: 68 dB-A minimum and 73.8 dB-A maximum.
- Five-year warranty from the invoice date.
Installation and placement
Surface-mount the back plate with the four supplied 1/4-inch washers and supplied screws or bolts through the provided holes into suitable prepared mountings. Wall-suitable mountings or other suitable hardware are by others. The cover attaches with the supplied recessed pin-hex screws. Electrical service and connection are by others and must be in place before installing the cover.
For accessibility, the manufacturer specifies the bottom of the sensor lens at a maximum 48 inches AFF where reach is unobstructed, or a maximum 44 inches AFF where forward reach over an obstruction has a reach depth greater than 20 inches and less than 25 inches. For general utility, the manufacturer recommends 44–54 inches AFF; consult the supplied installation instructions for site conditions.
