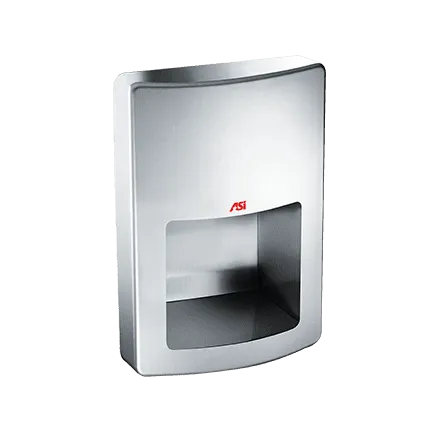

ASI 20199-1 Roval Semi-Recessed High Speed Automatic Hand Dryer
The ASI 20199-1 is a 120V, semi-recessed automatic hand dryer for commercial restrooms. It has a curved Roval face, touch-free activation, and a Type 304 satin-finish stainless steel cover; the manufacturer lists a five-year warranty.
Specifications
- Electrical: 120 VAC, 50/60 Hz, 10.42 A maximum, 1,250 W.
- Construction: 18-gauge cover and 20-gauge cabinet, in Type 304 stainless steel with a satin finish.
- Dimensions: 11 inches wide by 15-1/2 inches high by 5-23/32 inches deep; semi-recessed mounting.
- Airflow: 60 CFM; published sound level: 66 dB-A.
- Automatic no-touch sensor operation; a blue sensor-array light guides hand placement, and the dryer shuts off after a 60-second timeout.
- Five-year warranty from date of invoice.
Recess and electrical planning
Provide a minimum rough wall opening of 10-1/2 inches wide by 15-1/8 inches high by 3-1/4 inches deep. Mount the cabinet in the recess with four #10 screws into suitable wall preparation, or use suitable hardware for the wall; fasteners and wall preparation are by others. For masonry, the manufacturer specifies expansion bolts or anchors for 1/4-inch screws. Locate electrical service at the position shown in the unit diagram; service and connection are by others and must be completed before the cover is installed. The cover is secured with two concealed pin-hex security screws supplied with the unit.
For general utility, the manufacturer recommends positioning the top of the dryer hand chamber 44 to 50 inches above finished floor. Its installation guidance gives a maximum of 48 inches for clear-floor reach access, with lower maximum heights where only specified side or forward reach over an obstruction is available; confirm the applicable reach condition for the installation. For two or more dryers, maintain at least 24 inches between units on center.
