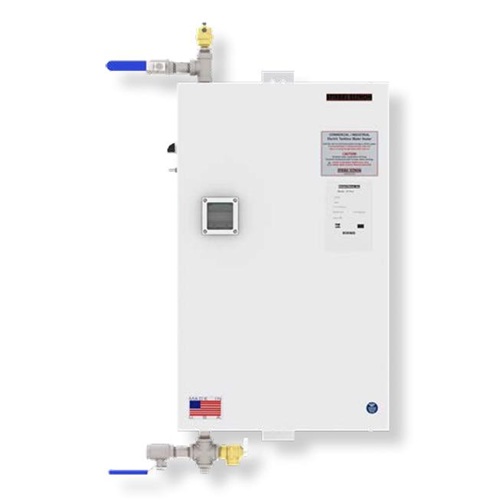

Stiebel Eltron CES Plus 72 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 72 kW (575V Delta) is a premier, industrial-grade tankless water heating solution engineered specifically for high-voltage commercial facilities utilizing 575V 3-phase Delta electrical service. Identified by part number CESPLUS-072-575, this unit represents the peak of high-voltage thermal engineering, delivering a massive 72.00 kW of instantaneous power. Designed to eliminate the inefficiencies of large storage tanks, it provides a relentless supply of hot water while maintaining an exceptionally small footprint and reducing operational energy costs.
Performance & Electrical Specifications
The CESPLUS-072-575 is optimized for maximum thermal output in specialized 575V industrial environments, making it the definitive choice for heavy-duty sanitation, industrial process heating, and high-capacity food service operations.
- Power Output: 72.00 kW at 575V.
- Amperage: 72.29 Amps.
- Breaker Requirement: 80A (3-Pole).
- Temperature Rise Capability:
- 491°F rise at 1 gpm.
- 246°F rise at 2 gpm.
- 164°F rise at 3 gpm.
- 123°F rise at 4 gpm.
- 98°F rise at 5 gpm.
- Activation Rate: Features an ultra-low minimum activation threshold of 0.7 gpm (2.7 l/m), ensuring full compatibility with high-efficiency, low-flow commercial fixtures.
- Maximum Flow Rate: Engineered to support substantial facility demands with a flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal heating chambers are constructed from premium 316L stainless steel, offering maximum resistance to corrosion, pitting, and scaling in aggressive industrial water conditions.
- Precision Temperature Management: Features user-adjustable temperature controls from 60°F to 90°F (16°C to 32°C), with granular 1°F (1°C) increments to satisfy exact technical specifications and safety standards.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For facilities requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within a wide operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, ensuring superior build quality and adherence to strict industrial testing protocols.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Upgrade your facility with the high-voltage efficiency and relentless power of the Stiebel Eltron CESPLUS-072-575. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical guidance.
Download the C Series Commercial Options List
