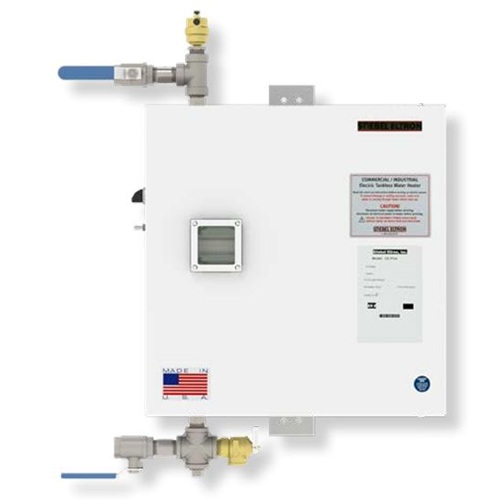

Stiebel Eltron CES Plus 24 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 24 kW (575V Delta) is a specialized, industrial-grade tankless water heating solution engineered for heavy-duty commercial facilities utilizing 575V 3-phase Delta electrical service. Identified by part number CESPLUS-024-575, this unit provides a powerful 24.00 kW of instantaneous heating, ensuring a continuous and endless supply of hot water for demanding professional environments. By heating water strictly on demand, it eliminates the standby heat loss associated with traditional tank heaters, delivering superior energy efficiency in an exceptionally compact footprint.
Performance & Electrical Specifications
The CESPLUS-024-575 is optimized for high-voltage industrial applications, allowing for an incredibly low amperage draw while maintaining substantial thermal output for sanitation and industrial processes.
- Power Output: 24.00 kW at 575V.
- Amperage: 24.10 Amps.
- Breaker Requirement: 30A (3-Pole).
- Temperature Rise Capability:
- 164°F rise at 1 gpm.
- 82°F rise at 2 gpm.
- 55°F rise at 3 gpm.
- 41°F rise at 4 gpm.
- 33°F rise at 5 gpm.
- Activation Rate: Features a sensitive minimum activation flow of 0.7 gpm (2.7 l/m), ensuring reliable performance with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Capable of supporting facility demands up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Constructed with a high-grade 316L stainless steel heat exchanger to ensure maximum durability and resistance to corrosive water conditions in industrial settings.
- Precision Temperature Control: Features an adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular increments of 1°F (1°C) for exacting process requirements.
- Robust Enclosure Protection: The unit comes standard with a NEMA 3 enclosure. For more demanding environments, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available to protect against wash-down or corrosive atmospheres.
- Industrial Pressure Rating: Designed to operate reliably within a pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed and certified to ANSI/UL Std. 499; conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States to ensure the highest standards of quality control and material sourcing.
- Industrial Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty against defects in workmanship and materials.
Upgrade your commercial facility with the high-voltage efficiency of the Stiebel Eltron CESPLUS-024-575. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical guidance.
Download the C Series Commercial Options List
