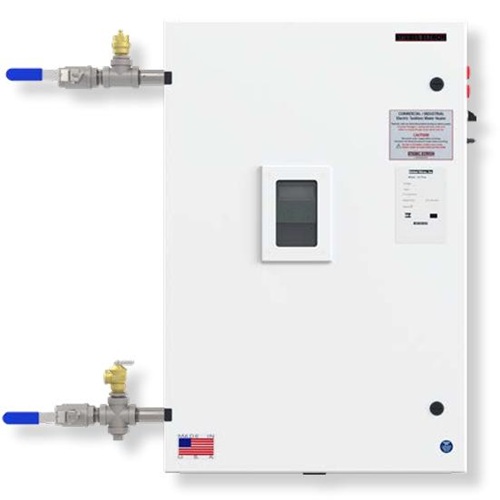

Stiebel Eltron CES Plus 108 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 108 kW (575V Delta) is a pinnacle of high-voltage thermal engineering, specifically designed for industrial and commercial facilities operating on 575V 3-phase Delta electrical infrastructure. Identified by part number CESPLUS-108-575, this unit delivers a formidable 108.2 kW of instantaneous power, making it one of the most powerful and efficient on-demand water heating solutions available for high-voltage applications. By eliminating the standby heat loss inherent in traditional storage tanks, it provides a relentless supply of hot water while maintaining a compact, space-saving footprint.
Performance & Electrical Specifications
The CESPLUS-108-575 is optimized for extreme thermal demand in specialized 575V environments, providing reliable service for large-scale industrial manufacturing, high-volume sanitation, and heavy-duty food service.
- Power Output: 108.2 kW at 575V.
- Amperage: 108.6 Amps.
- Breaker Requirement: 125A (3-Pole).
- Temperature Rise Capability:
- 738°F rise at 1 gpm.
- 369°F rise at 2 gpm.
- 246°F rise at 3 gpm.
- 185°F rise at 4 gpm.
- 148°F rise at 5 gpm.
- Activation Rate: Features an ultra-low minimum activation threshold of 0.7 gpm (2.7 l/m), ensuring precision performance even when paired with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Engineered to support substantial infrastructure demands with a flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths are constructed from premium 316L stainless steel, offering the highest level of resistance to corrosion, pitting, and scale buildup in aggressive industrial water conditions.
- Precision Temperature Management: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular adjustments in 1°F (1°C) increments to meet exacting process or safety requirements.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For facilities requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within a wide operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, ensuring superior build quality and adherence to strict testing standards.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
