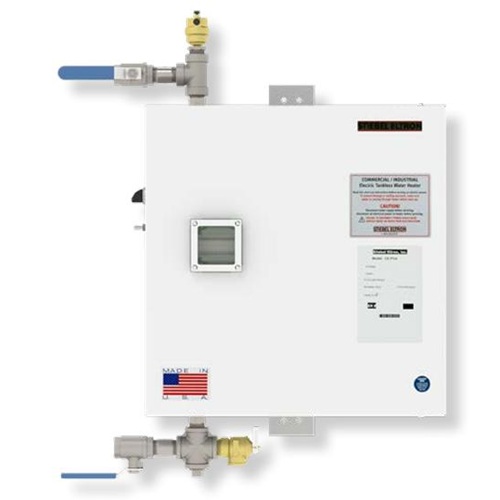

Stiebel Eltron CES Plus 27 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 27 kW (208V Delta) is a high-output, industrial-grade tankless water heating solution engineered for demanding commercial facilities utilizing 208V 3-phase Delta electrical infrastructure. As a premier model in the CES Plus series (Part Number: CESPLUS-027-208), this unit delivers a powerful 27.04 kW of instantaneous heating power. By heating water on demand, it provides a continuous and endless supply of hot water for high-capacity professional applications while eliminating the standby heat losses and significant footprint of traditional storage tanks.
Performance & Electrical Specifications
The CESPLUS-027-208 is precision-engineered for maximum output in 208V systems, providing robust thermal performance for large-scale sanitation, food service, and industrial process heating.
- Power Output: 27.04 kW at 208V.
- Amperage: 75.06 Amps.
- Breaker Requirement: 80A (3-Pole).
- Temperature Rise Capability:
- 185°F rise at 1 gpm.
- 92°F rise at 2 gpm.
- 62°F rise at 3 gpm.
- 46°F rise at 4 gpm.
- 37°F rise at 5 gpm.
- Activation Rate: Features a sensitive minimum activation threshold of 0.7 gpm (2.7 l/m), ensuring reliable performance even with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Engineered to support substantial facility demands with flow capacities up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths are constructed from premium 316L stainless steel, offering maximum resistance to corrosion and scaling in rigorous industrial environments.
- Precision Temperature Management: Features a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular adjustments in 1°F (1°C) increments to meet exact technical specifications.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For specialized environments requiring wash-down protection or resistance to corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within an operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, ensuring peak build quality and adherence to strict testing standards.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Equip your facility with the heavy-duty efficiency of the Stiebel Eltron CESPLUS-027-208. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
