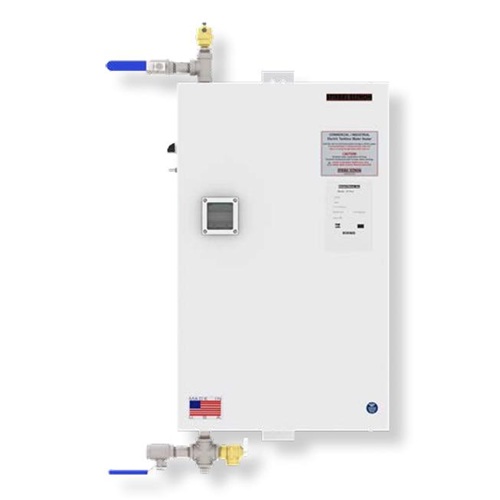

Stiebel Eltron CE Plus 60 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 60 kW (240V Delta) is a premier industrial water heating solution designed for high-demand commercial applications that require instantaneous, precision-controlled hot water. Engineered for 240V 3-phase Delta electrical configurations, this model (Part Number: CE-Plus-060-240) offers a 99% energy efficiency rating. By heating water only on demand, it eliminates the expensive standby heat losses and significant floor space requirements of traditional storage tank systems.
Performance & Electrical Specifications
The CE Plus 60 kW is a high-amperage thermal powerhouse, capable of meeting the most strenuous hot water requirements in industrial facilities.
- Power Output: 60.00 kW at 240V.
- Amperage: 144.34 Amps.
- Breaker Requirement: 175A (3-Pole).
- Temperature Rise Capability:
- 410°F rise at 1 gpm.
- 205°F rise at 2 gpm.
- 137°F rise at 3 gpm.
- 102°F rise at 4 gpm.
- Activation Rate: A minimum activation flow of only 0.7 gpm ensures consistent performance even with high-efficiency or sensor-actuated fixtures.
- Maximum Flow Rate: Robust internal architecture supports high-capacity facility needs up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering & Durability
- 316L Stainless Steel Construction: The heat exchanger and all internal plumbing connections are fabricated from premium 316L stainless steel to provide maximum resistance to corrosion and thermal fatigue.
- Direct Coil™ Heating Technology: This proprietary heating system uses elements that vibrate slightly during operation to physically shed limescale and mineral accumulation. This self-cleaning mechanism ensures peak thermal transfer and extends the operational life of the unit in hard water conditions.
- Advanced Flow Control™: An integrated microprocessor automatically modulates the water flow to maintain a precise output temperature if the facility's demand temporarily exceeds the unit's 60 kW heating capacity.
- NEMA Rated Protection: The unit comes standard in a NEMA 3 enclosure. For wash-down areas or corrosive environments, optional NEMA 4 and 4X (Stainless Steel) enclosures are available.
- Safety Protocols: Includes four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Safety Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Certified: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Commercial Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on all components and materials.
- Manufacturing: Proudly manufactured in the USA.
Maximize your facility’s efficiency with the high-amperage performance of the Stiebel Eltron CE-Plus-060-240. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
