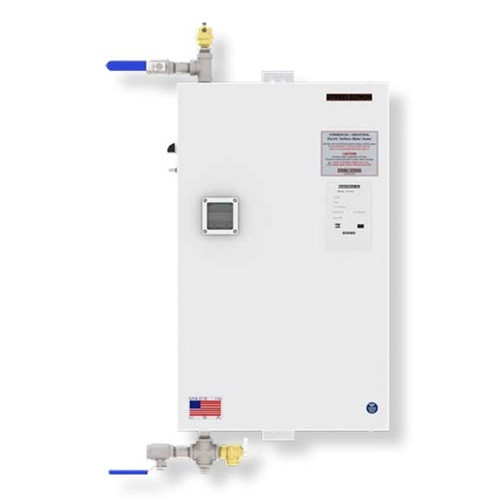

Stiebel Eltron CE Plus 54 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 54 kW (240V Delta) is a high-capacity, industrial-grade thermal solution engineered for rigorous commercial environments that demand instantaneous and voluminous hot water. Optimized for 240V 3-phase Delta electrical configurations, this model (Part Number: CE-Plus-054-240) operates with a 99% energy efficiency rating. By heating water only as needed, it eliminates the substantial standby energy losses and massive spatial requirements associated with traditional commercial storage tanks.
Performance & Electrical Specifications
The CE Plus 54 kW is a high-amperage powerhouse designed to provide precision temperature control even during peak facility demand.
- Power Output: 54.05 kW at 240V.
- Amperage: 130.02 Amps.
- Breaker Requirement: 150A (3-Pole).
- Temperature Rise Capability:
- 369°F rise at 1 gpm.
- 184°F rise at 2 gpm.
- 123°F rise at 3 gpm.
- 92°F rise at 4 gpm.
- Activation Rate: A low 0.7 gpm activation threshold ensures full functionality with high-efficiency sensor faucets and low-flow fixtures.
- Max Flow Rate: Industrial architecture supports high-capacity requirements up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering & Durability
- 316L Stainless Steel Construction: Every unit features a 316L stainless steel heat exchanger and internal plumbing to provide superior resistance against corrosion, thermal fatigue, and high-pressure stress.
- Direct Coil™ Heating Technology: This proprietary system utilizes heating elements that vibrate slightly during operation to physically shed limescale and mineral deposits. This self-cleaning action ensures maximum heat transfer and prolonged equipment life in hard water environments.
- Advanced Flow Control™: Exclusive technology automatically modulates the water flow if facility demand exceeds the unit's heating capacity, maintaining a stable and consistent output temperature.
- NEMA Protection Options: The unit comes standard in a NEMA 3 enclosure. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down stations or highly corrosive industrial atmospheres.
- Comprehensive Safety Protocols: Features four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Industrial Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on all components and materials.
- Origin: Proudly manufactured in the USA.
Equip your facility with the high-capacity performance of the Stiebel Eltron CE-Plus-054-240. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical support.
