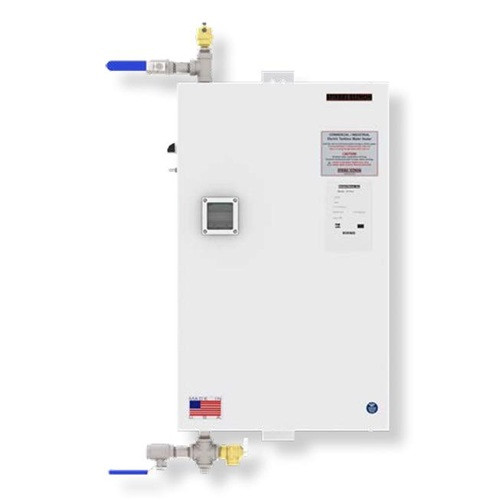

Stiebel Eltron CE Plus 54 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 54 kW (208V Delta) is a premier, high-capacity thermal solution engineered for rigorous industrial and commercial applications requiring instantaneous and voluminous hot water. Specifically optimized for 208V 3-phase Delta electrical configurations, this model (Part Number: CE-Plus-054-208) operates with a 99% energy efficiency rating, effectively eliminating the standby energy losses and massive spatial requirements of traditional storage tank systems.
Performance & Electrical Specifications
The CE Plus 54 kW is a high-amperage powerhouse designed to maintain precise temperature control even under heavy simultaneous demand.
- Power Output: 54.08 kW at 208V.
- Amperage: 150.11 Amps.
- Breaker Requirement: 175A (3-Pole).
- Temperature Rise Capability:
- 369°F rise at 1 gpm.
- 184°F rise at 2 gpm.
- 123°F rise at 3 gpm.
- 92°F rise at 4 gpm.
- Activation Rate: A low 0.7 gpm activation threshold ensures seamless operation with high-efficiency sensor faucets and low-flow fixtures.
- Max Flow Rate: Integrated fluidics support high-capacity requirements up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering
- 316L Stainless Steel Construction: Every unit features a 316L stainless steel heat exchanger and internal plumbing connections to provide maximum resistance against corrosion and thermal stress in demanding environments.
- Direct Coil™ Heating Technology: This proprietary system utilizes heating elements that vibrate slightly during operation to physically prevent the accumulation of limescale and mineral deposits, ensuring long-term thermal efficiency.
- Advanced Flow Control™: Exclusive technology automatically modulates the water flow if facility demand exceeds the unit's maximum heating capacity, ensuring stable output temperatures.
- NEMA Protection Options: Comes standard in a NEMA 3 enclosure. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down stations or corrosive industrial atmospheres.
- Multi-Level Safety: Features four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Industrial Warranty: Includes a 6-year warranty against leakage and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
