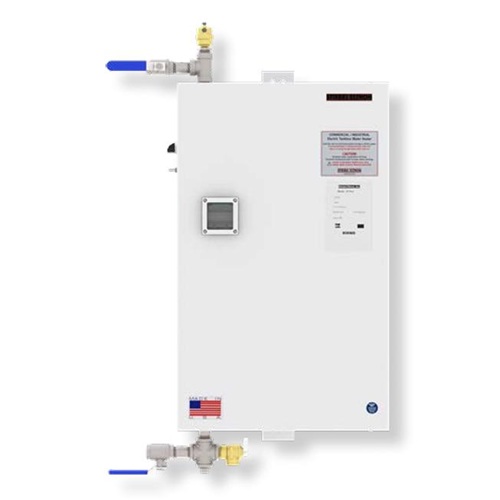

Stiebel Eltron CE Plus 72 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 72 kW (240V Delta) is a high-amperage industrial heating solution engineered for massive thermal loads and precision temperature accuracy. Designed for 240V 3-phase Delta electrical architectures, this model (Part Number: CE-Plus-072-240) operates at 99% energy efficiency, providing instantaneous hot water while eliminating the standby heat losses and significant floor space requirements of traditional storage boiler systems.
Performance & Electrical Specifications
The CE Plus 72 kW leverages its substantial power output to provide extreme temperature rises, making it the ideal choice for heavy-duty process heating and high-demand commercial sanitation.
- Power Output: 72.00 kW at 240V.
- Amperage: 173.21 Amps.
- Breaker Requirement: 200A (3-Pole).
- Temperature Rise Capability:
- 491°F rise at 1 gpm.
- 246°F rise at 2 gpm.
- 164°F rise at 3 gpm.
- 123°F rise at 4 gpm.
- Activation Rate: An ultra-low minimum activation flow of 0.7 gpm ensures seamless performance with high-efficiency sensor faucets.
- Maximum Flow Rate: Advanced internal fluidics support high-capacity requirements up to 10.6 gpm at 60 psi.
Industrial Engineering & Durability
- 316L Stainless Steel Architecture: Constructed with a high-grade 316L stainless steel heat exchanger and internal plumbing, offering superior resistance to chemical corrosion and thermal stress.
- Direct Coil™ Heating Technology: This proprietary design features heating elements that vibrate during operation to mechanically prevent the buildup of limescale and minerals. This self-cleaning action ensures peak thermal transfer throughout the life of the unit.
- Advanced Flow Control™: This exclusive technology automatically modulates water flow to maintain precise output temperatures if the facility's demand temporarily exceeds the unit's 72 kW capacity.
- NEMA Rated Protection: Units come standard in a NEMA 3 enclosure. For specialized wash-down environments or corrosive atmospheres, optional NEMA 4 and 4X (Stainless Steel) enclosures are available.
- Safety & Reliability: Integrated with four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Safety Certifications: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Commercial Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty on all components.
- Origin: Proudly manufactured in the USA.
Equip your high-demand facility with the uncompromising power of the Stiebel Eltron CE-Plus-072-240. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
