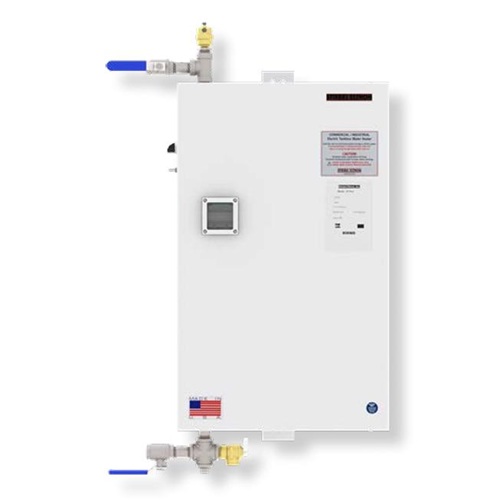

Stiebel Eltron CE Plus 48 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 48 kW (240V Delta) is a premier industrial thermal solution designed for high-demand commercial environments that require instantaneous, high-volume hot water delivery. Configured for 240V 3-phase Delta electrical systems, this model (Part Number: CE-Plus-048-240) operates at a remarkable 99% energy efficiency, effectively eliminating the standby energy losses and logistical footprints of traditional commercial storage tanks.
Performance & Electrical Specifications
The CE Plus 48 kW is engineered for heavy-duty applications, utilizing advanced microprocessor logic to provide precision temperature control even during peak flow events.
- Power Output: 50.00 kW at 240V.
- Amperage: 120.28 Amps.
- Breaker Requirement: 150A (3-Pole).
- Temperature Rise:
- 341°F rise at 1 gpm.
- 170°F rise at 2 gpm.
- 114°F rise at 3 gpm.
- 85°F rise at 4 gpm.
- Activation Rate: Minimum activation flow of 0.7 gpm, ensuring compatibility with high-efficiency sensor faucets and low-flow sanitation fixtures.
- Max Flow Rate: Industrial architecture supports high-capacity requirements up to 10.6 gpm at 60 psi.
Engineering & Industrial Durability
- 316L Stainless Steel Construction: This unit features a high-grade 316L stainless steel heat exchanger and internal plumbing, providing superior resistance against corrosion, thermal fatigue, and high-pressure stress in industrial settings.
- Direct Coil™ Heating System: Utilizes a proprietary design where the heating elements vibrate during operation. This mechanical action prevents the accumulation of limescale and mineral deposits, maintaining peak efficiency in hard water environments.
- Advanced Flow Control™: Exclusive technology that manages water flow automatically to maintain consistent output temperatures if facility demand temporarily exceeds the unit's maximum kW capacity.
- NEMA Protection: Comes standard in a NEMA 3 enclosure. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down areas or highly corrosive atmospheres.
- Comprehensive Safety Protocols: Integrated with four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Industry-Leading Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
Maximize your facility's efficiency with the Stiebel Eltron CE-Plus-048-240. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
