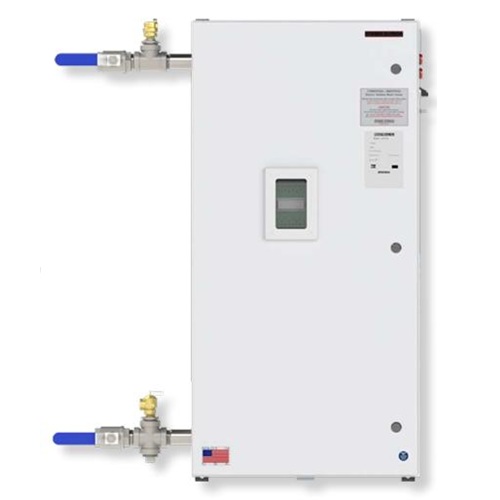

Stiebel Eltron CE Plus 120 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 120 kW (480V Delta) is a high-capacity, industrial-grade thermal solution designed for facilities with massive hot water requirements and high-voltage electrical infrastructure. Engineered for 480V 3-phase Delta configurations, this model (Part Number: CE-Plus-120-480) provides an unparalleled 120.00 kW of instantaneous heating power while maintaining a 99% energy efficiency rating. By heating water on demand, it eliminates the substantial energy waste and floor space demands associated with traditional commercial storage tank systems or large-scale boilers.
Performance & Electrical Specifications
Operating at 480V, the CE Plus 120 kW is designed to deliver extreme temperature rises and consistent flow for heavy industrial processes and large commercial operations.
- Power Output: 120.00 kW at 480V.
- Amperage: 144.34 Amps.
- Breaker Requirement: 175A (3-Pole).
- Temperature Rise Capability:
- 819°F rise at 1 gpm.
- 410°F rise at 2 gpm.
- 273°F rise at 3 gpm.
- 205°F rise at 4 gpm.
- Activation Rate: A low 0.7 gpm activation threshold ensures reliable performance for both high-volume industrial tasks and low-flow, high-efficiency fixtures.
- Maximum Flow Rate: The robust internal architecture supports high-capacity facility needs up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering & Durability
- 316L Stainless Steel Construction: To ensure longevity in demanding environments, the heat exchanger and all internal fluid paths are constructed from premium 316L stainless steel for superior corrosion resistance.
- Direct Coil™ Heating Technology: This proprietary system utilizes heating elements that vibrate slightly during operation to physically shed limescale and mineral accumulation. This self-cleaning action ensures peak thermal transfer and extends the operational life of the unit in hard water conditions.
- Advanced Flow Control™: An integrated microprocessor automatically modulates the water flow to maintain a precise output temperature if the facility's demand temporarily exceeds the unit's 120 kW capacity.
- NEMA Protection: The unit comes standard in a NEMA 3 enclosure. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down environments or corrosive industrial atmospheres.
- Safety Features: Includes four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Certifications: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Commercial Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on all components and materials.
- Manufacturing: Proudly manufactured in the USA.
Equip your facility with the massive heating capacity and 480V efficiency of the Stiebel Eltron CE-Plus-120-480. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
