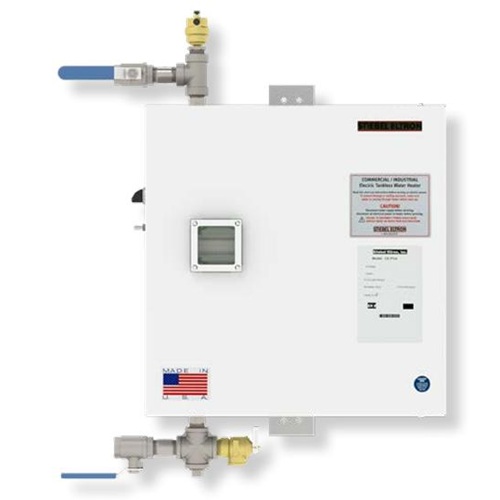

Stiebel Eltron CE Plus 24 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 24 kW (480V Delta) is a premier high-voltage thermal solution engineered specifically for industrial and mission-critical commercial applications. Utilizing a 480V 3-phase Delta configuration, this model (Part Number: CE-Plus-024-480) provides a continuous, instantaneous supply of hot water while operating at an exceptional 99% energy efficiency. By eliminating the standby heat losses inherent in traditional tank systems, it significantly optimizes energy consumption for facilities with high-demand hot water requirements.
Performance & Electrical Specifications
The CE Plus series integrates sophisticated microprocessor technology with industrial-grade components to ensure precision and long-term reliability under heavy use.
- Power Output: 25.00 kW at 480V.
- Amperage: 30.07 Amps.
- Breaker Requirement: 35A (3-Pole).
- Temperature Rise:
- 171°F rise at 1 gpm.
- 85°F rise at 2 gpm.
- 57°F rise at 3 gpm.
- Activation Rate: Minimum activation flow of only 0.7 gpm, making it an ideal choice for high-efficiency, low-flow commercial fixtures.
- Max Flow Rate: High-capacity internal design supports flow requirements up to 10.6 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Constructed with premium 316L stainless steel for the heat exchanger and all internal pipe connections, offering the highest resistance to chemical corrosion, thermal fatigue, and high-pressure stress.
- Direct Coil™ Heating System: Features a specialized heating element design that vibrates during operation to actively shed limescale and mineral deposits, ensuring consistent performance and efficiency in hard water environments.
- Advanced Flow Control™: This exclusive technology automatically maintains consistent output temperatures by modulating water flow if facility demand exceeds the unit’s maximum heating capacity.
- Industrial Enclosures: Standardized in a NEMA 3 enclosure for robust protection. Optional NEMA 4 and 4X enclosures are available for specialized environments requiring wash-down ratings or protection against highly corrosive atmospheres.
- Integrated Safety: Features four levels of over-temperature protection, an integrated automatic air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Warranty: Protected by a 6-year leakage warranty and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
Secure the best price for your commercial infrastructure or request a professional volume quote today. Shop the Stiebel Eltron CE-Plus-024-480 online at ProDryers or call 888-503-7937 for expert technical assistance.
