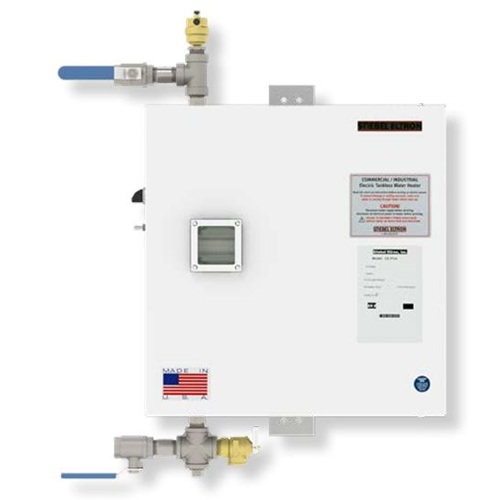

Stiebel Eltron CE Plus 36 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 36 kW (480V Delta) is a high-voltage industrial thermal powerhouse designed for large-scale commercial facilities requiring massive, instantaneous hot water delivery. Engineered for 480V 3-phase Delta electrical systems, this model (Part Number: CE-Plus-036-480) delivers uncompromising performance with a 99% energy efficiency rating. By heating water on demand, it eliminates the standby energy losses and substantial space requirements associated with traditional commercial boiler systems and storage tanks.
Performance & Electrical Specifications
The CE Plus 36 kW is built to handle mission-critical hot water demands, utilizing high-voltage efficiency to deliver a significant temperature rise at high flow rates.
- Power Output: 36.00 kW at 480V.
- Amperage: 43.30 Amps.
- Breaker Requirement: 50A (3-Pole).
- Temperature Rise:
- 245°F rise at 1 gpm.
- 123°F rise at 2 gpm.
- 82°F rise at 3 gpm.
- 61°F rise at 4 gpm.
- Activation Rate: Minimum activation flow of 0.7 gpm, allowing for precise operation even with high-efficiency, low-flow sanitation fixtures.
- Max Flow Rate: Robust internal fluidics support demanding requirements up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering
- 316L Stainless Steel Construction: Every unit is equipped with a high-grade 316L stainless steel heat exchanger and internal piping, offering superior resistance to chemical corrosion, thermal fatigue, and high-pressure stress in aggressive industrial environments.
- Direct Coil™ Heating System: Features a specialized design where the heating elements vibrate during operation. This mechanical action actively prevents the accumulation of limescale and mineral deposits, ensuring long-term thermal efficiency in hard water areas.
- Advanced Flow Control™: Exclusive microprocessor technology automatically modulates the water flow to maintain a consistent output temperature if the facility's instantaneous demand exceeds the unit’s 36 kW heating capacity.
- NEMA Protection: Comes standard in a NEMA 3 enclosure. For specialized facilities, optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down ratings or highly corrosive atmospheres.
- Comprehensive Safety Protocols: Equipped with four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Industry-Leading Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on all components and materials.
- Origin: Proudly manufactured in the USA.
Equip your facility with the power and high-voltage efficiency of the Stiebel Eltron CE-Plus-036-480. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
